https://doi.org/10.1140/epjti/s40485-024-00113-z
Research Article

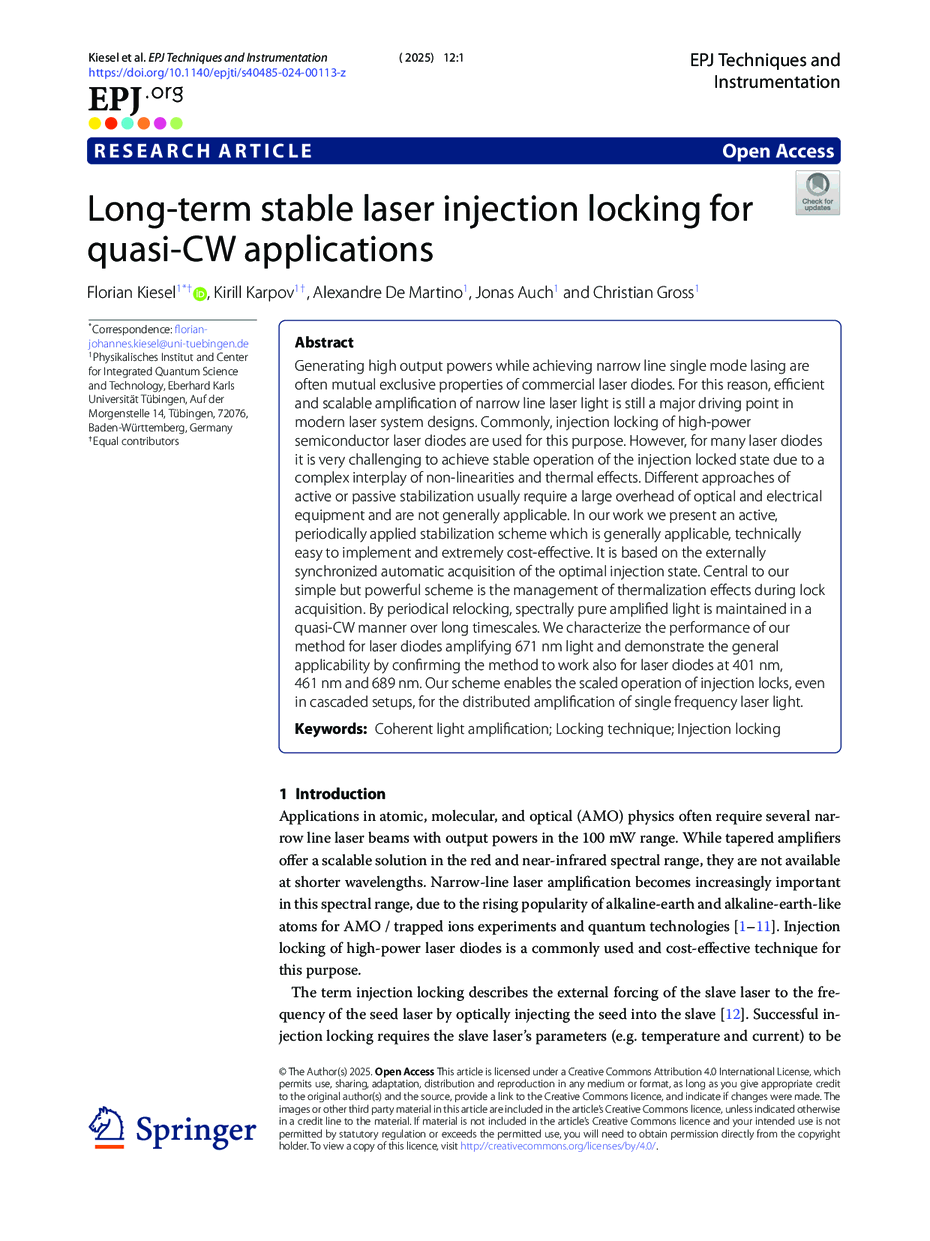

Long-term stable laser injection locking for quasi-CW applications
Physikalisches Institut and Center for Integrated Quantum Science and Technology, Eberhard Karls Universität Tübingen, Auf der Morgenstelle 14, 72076, Tübingen, Baden-Württemberg, Germany
a
florian-johannes.kiesel@uni-tuebingen.de
Received:
8
November
2024
Accepted:
19
December
2024
Published online:
10
January
2025
Generating high output powers while achieving narrow line single mode lasing are often mutual exclusive properties of commercial laser diodes. For this reason, efficient and scalable amplification of narrow line laser light is still a major driving point in modern laser system designs. Commonly, injection locking of high-power semiconductor laser diodes are used for this purpose. However, for many laser diodes it is very challenging to achieve stable operation of the injection locked state due to a complex interplay of non-linearities and thermal effects. Different approaches of active or passive stabilization usually require a large overhead of optical and electrical equipment and are not generally applicable. In our work we present an active, periodically applied stabilization scheme which is generally applicable, technically easy to implement and extremely cost-effective. It is based on the externally synchronized automatic acquisition of the optimal injection state. Central to our simple but powerful scheme is the management of thermalization effects during lock acquisition. By periodical relocking, spectrally pure amplified light is maintained in a quasi-CW manner over long timescales. We characterize the performance of our method for laser diodes amplifying 671 nm light and demonstrate the general applicability by confirming the method to work also for laser diodes at 401 nm, 461 nm and 689 nm. Our scheme enables the scaled operation of injection locks, even in cascaded setups, for the distributed amplification of single frequency laser light.
Key words: Coherent light amplification / Locking technique / Injection locking
